Below pictures are of specific items on the Supra:

Coming soon, a collection of electronic manuals I have saved. Profec, HKS, Blitz, Blitz, etc.

NEW! Sequential FAQ and Diagnosis write-up

NEW! Turbo replacement guide
Click here: for a UK Forum thread on Twins removal

NEW! Guide to replacing JUST the #2 Turbo cartridge

Boost Controller Hose Routing
Boost Gauge Wiring Diagram using Clock connections

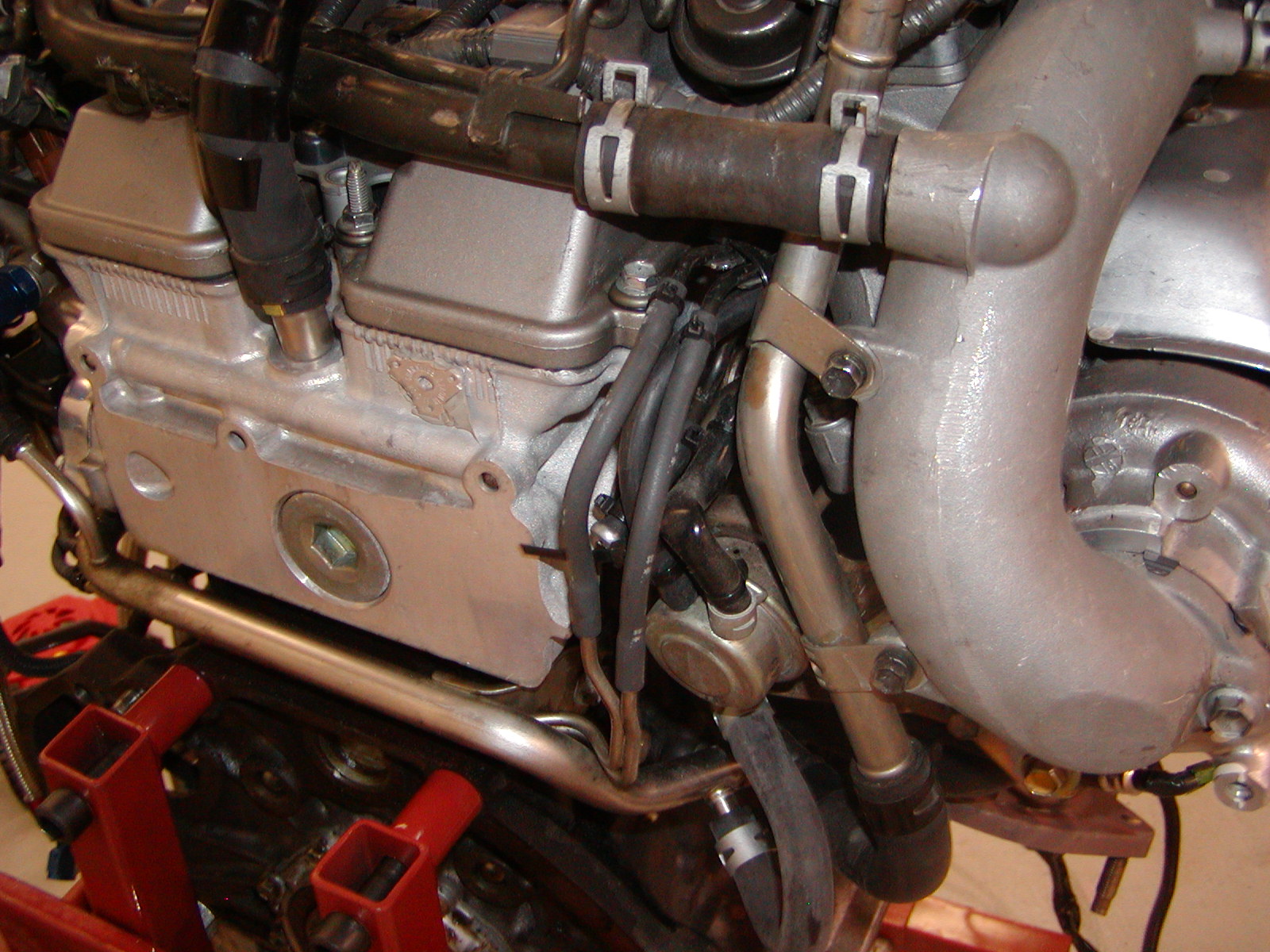

EBV Actuator

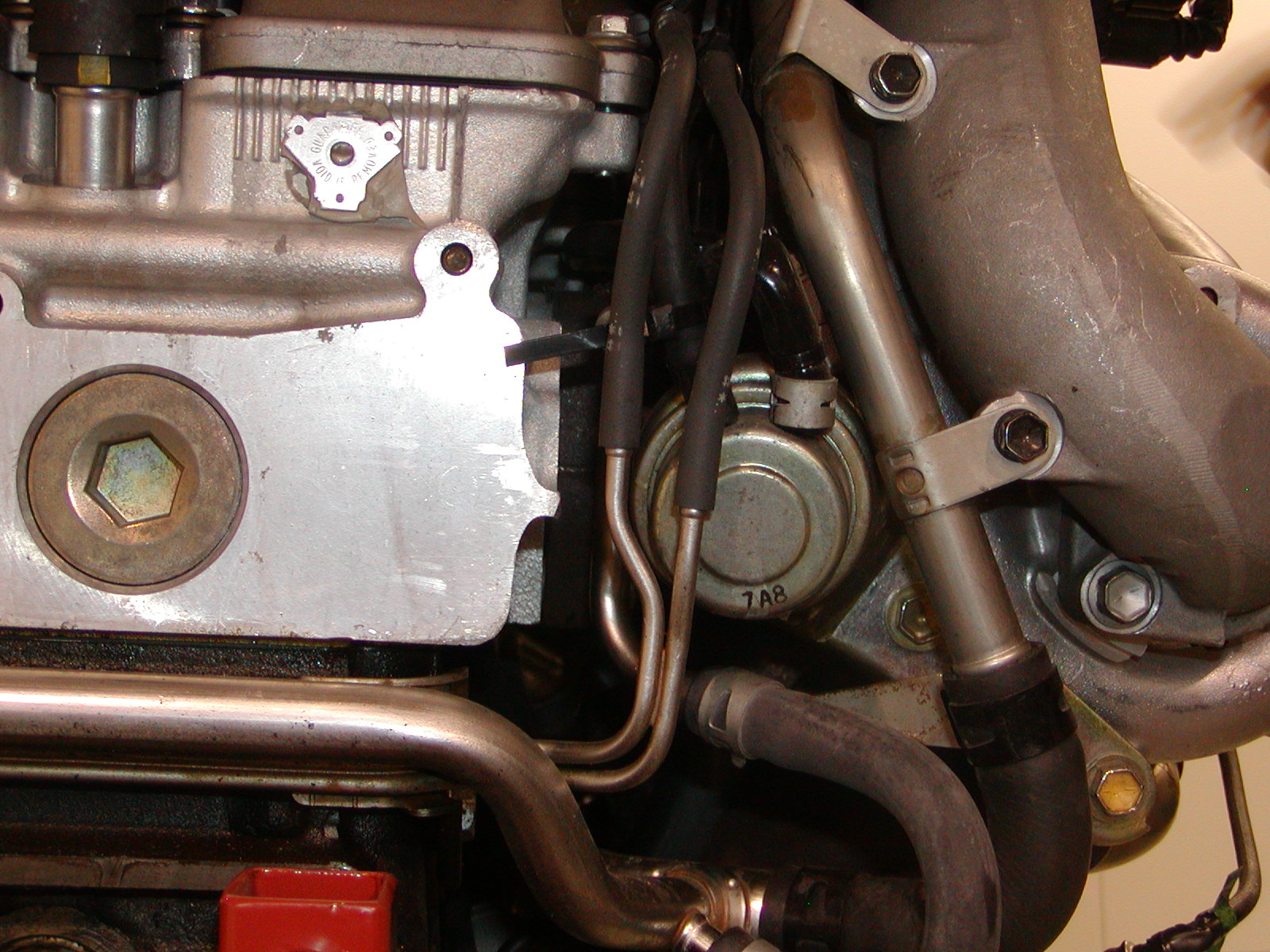

EBV Close Up
EBV Vacuum to Pressure Tank

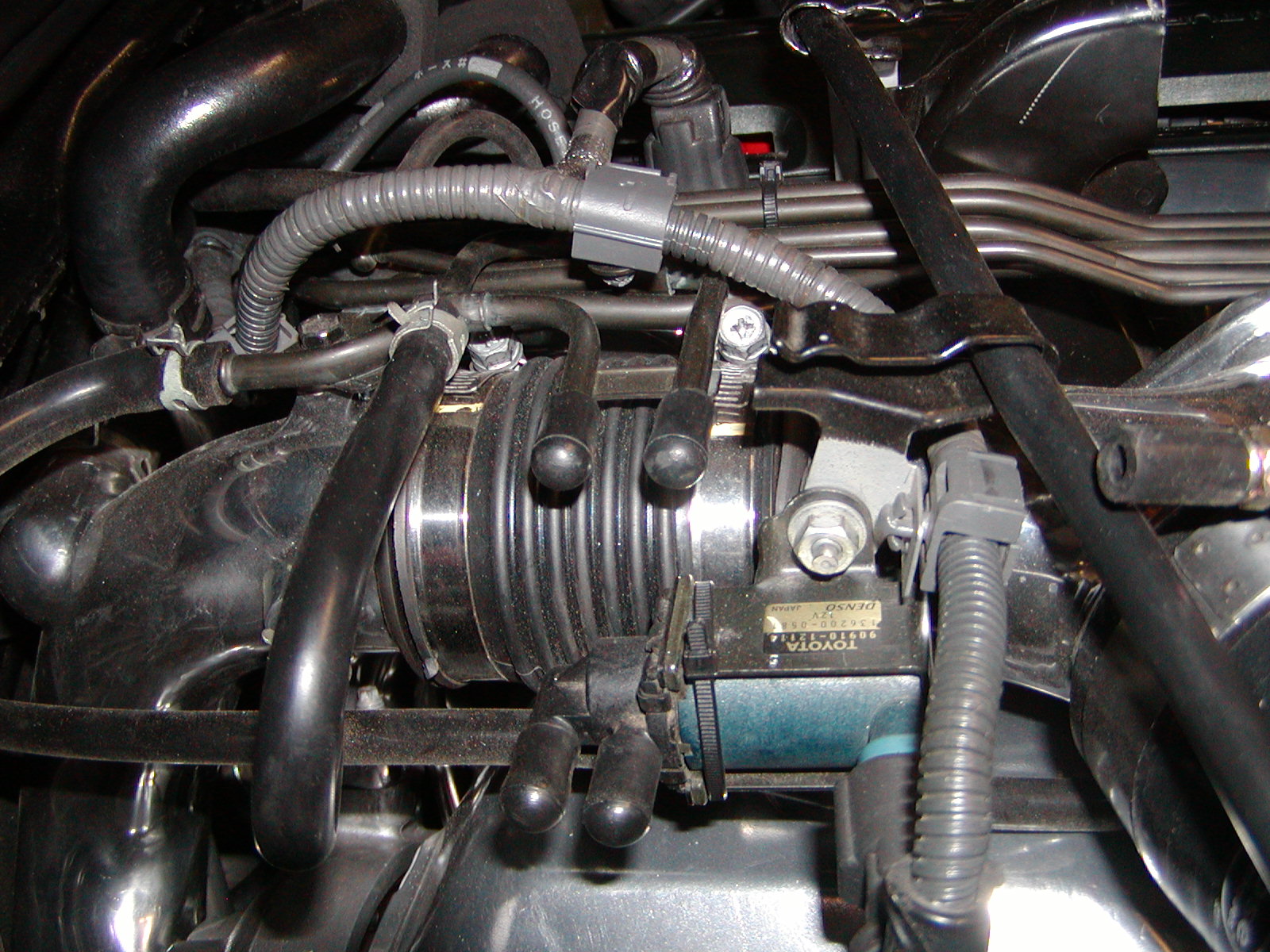

EBV VSV

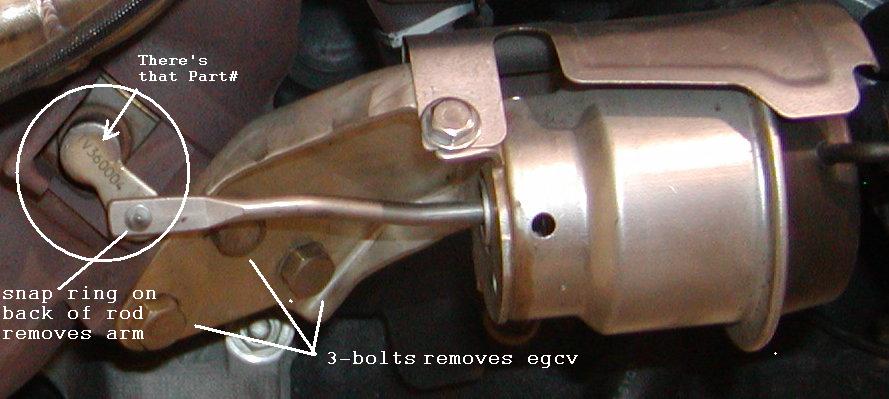

EGCV
EGCV and Wastegate VSV's

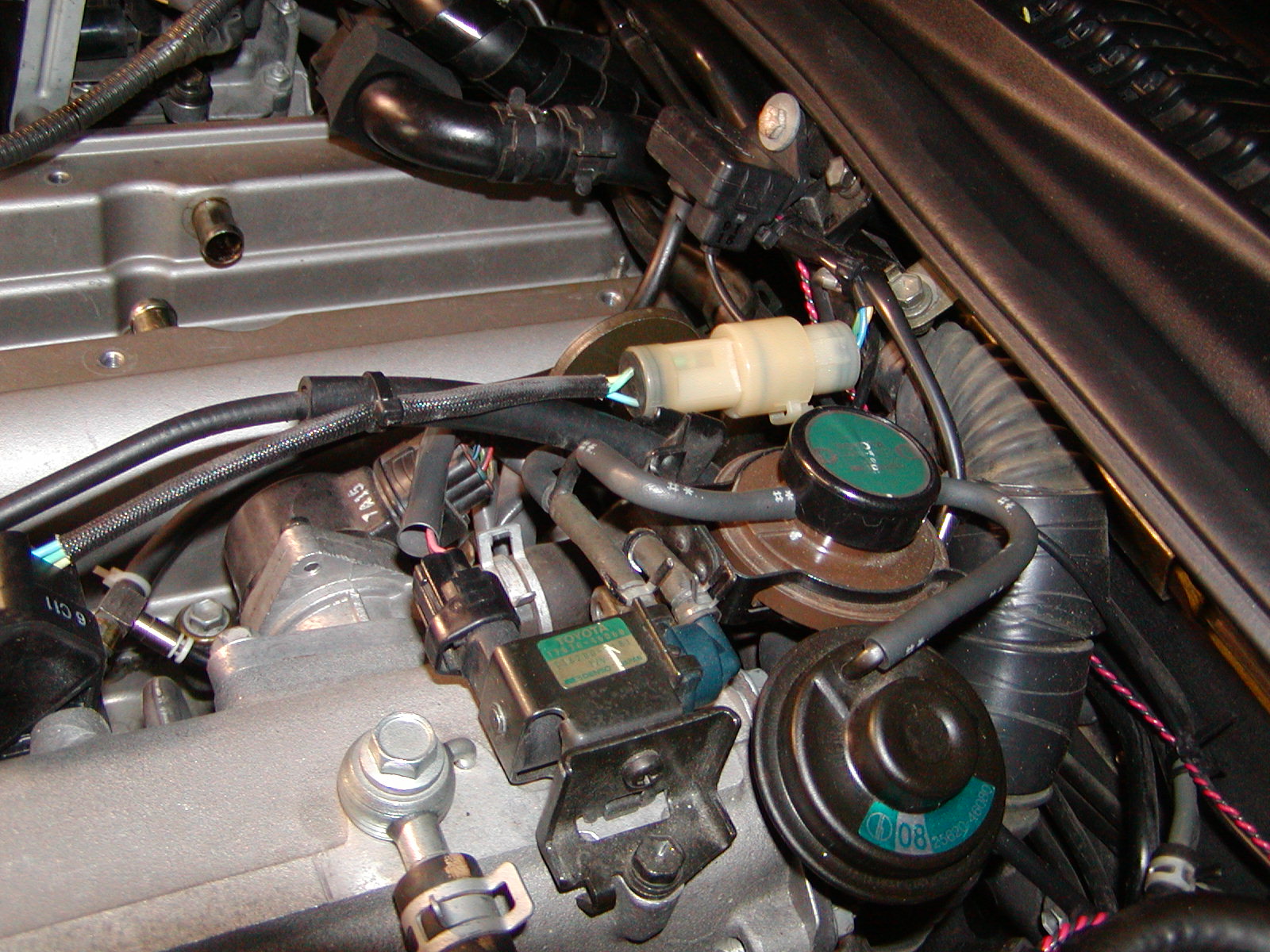

EGR

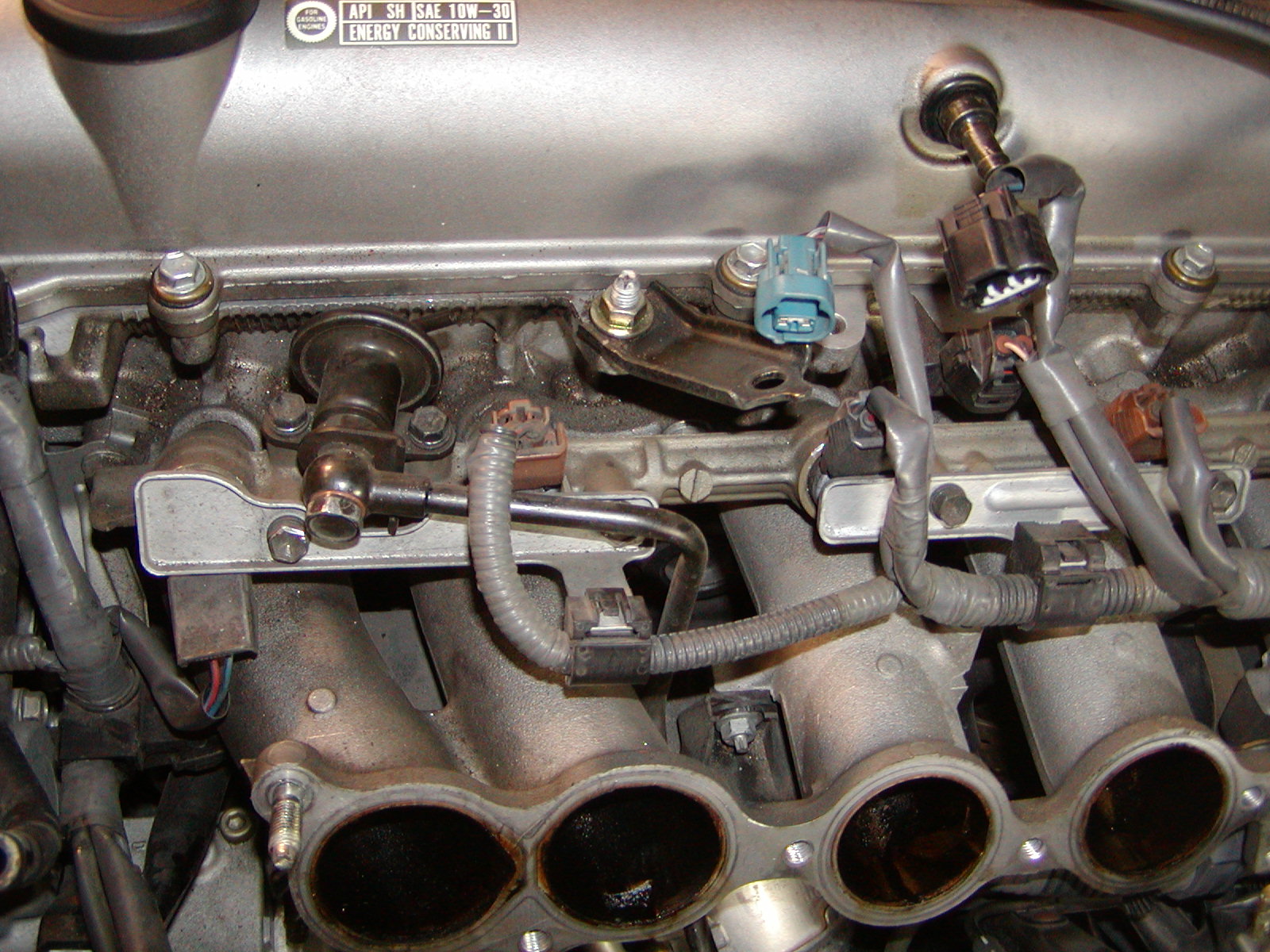

Fuel Pressure Regulator

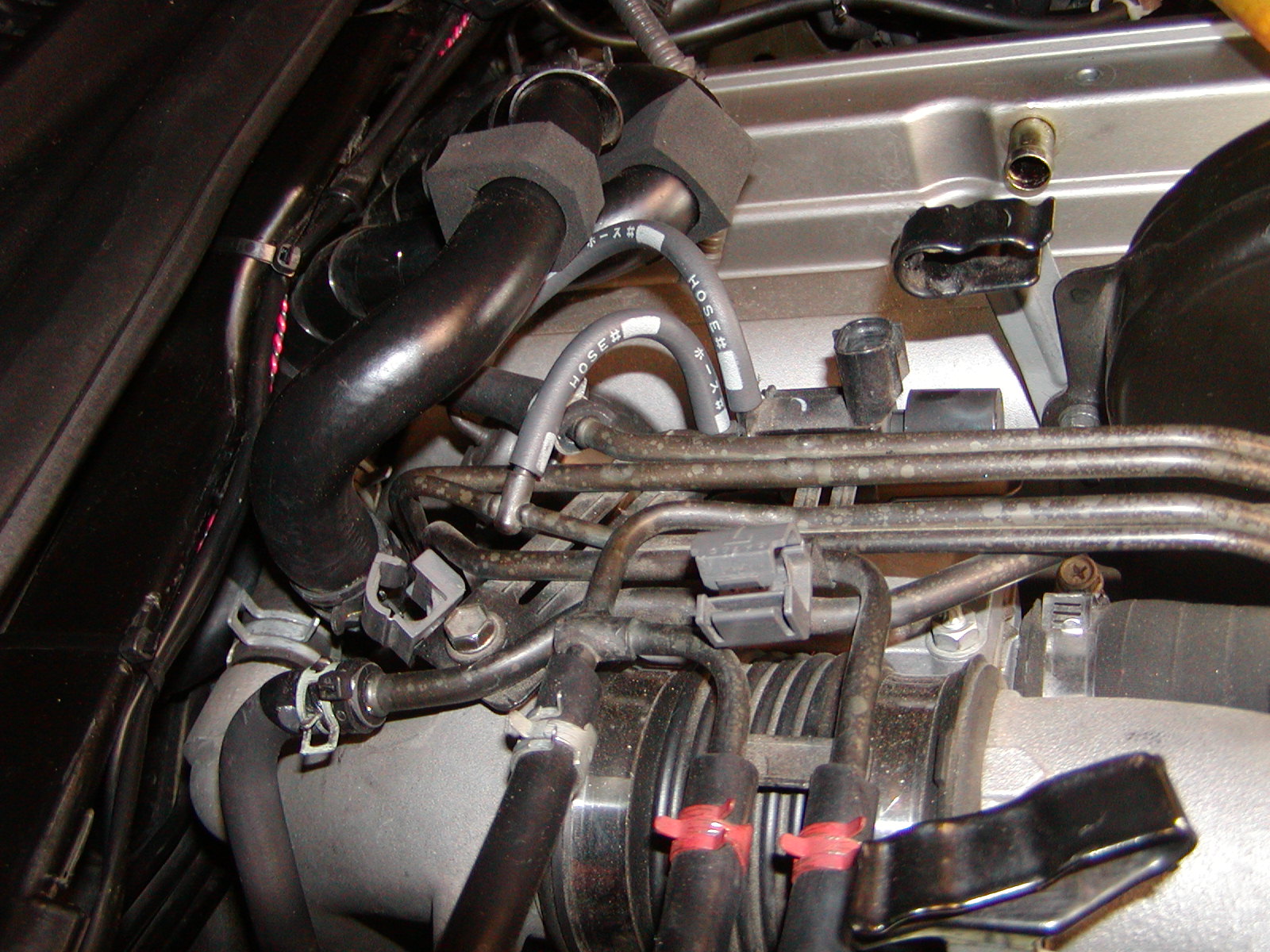

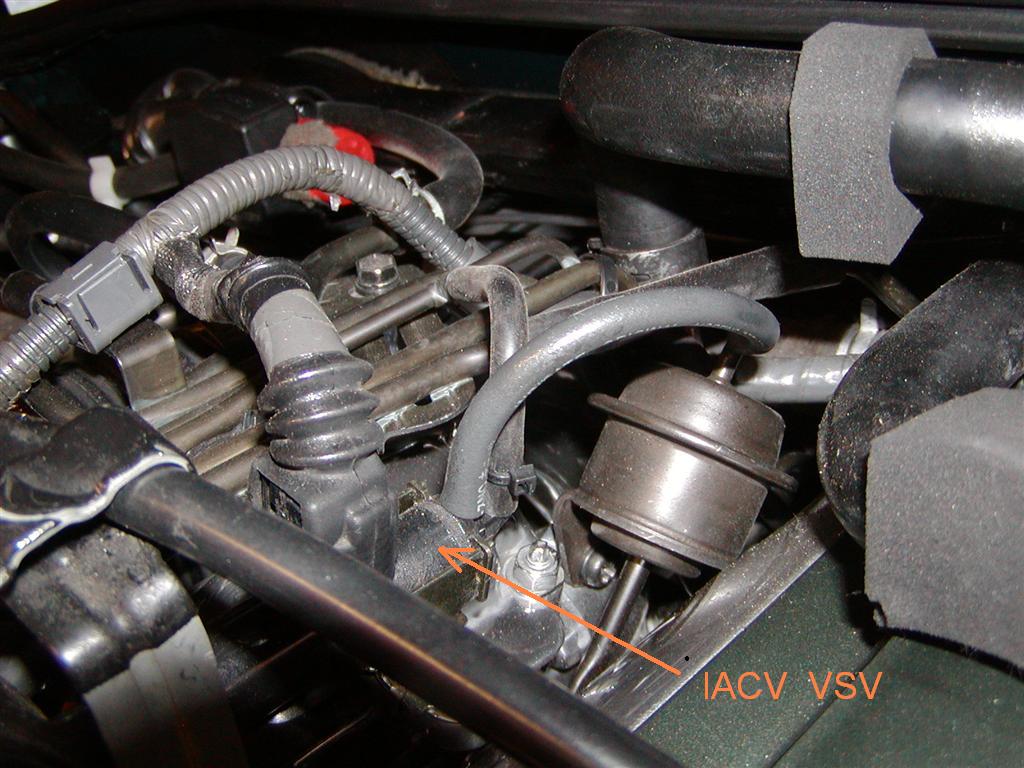

IACV VSV
Grounding locations

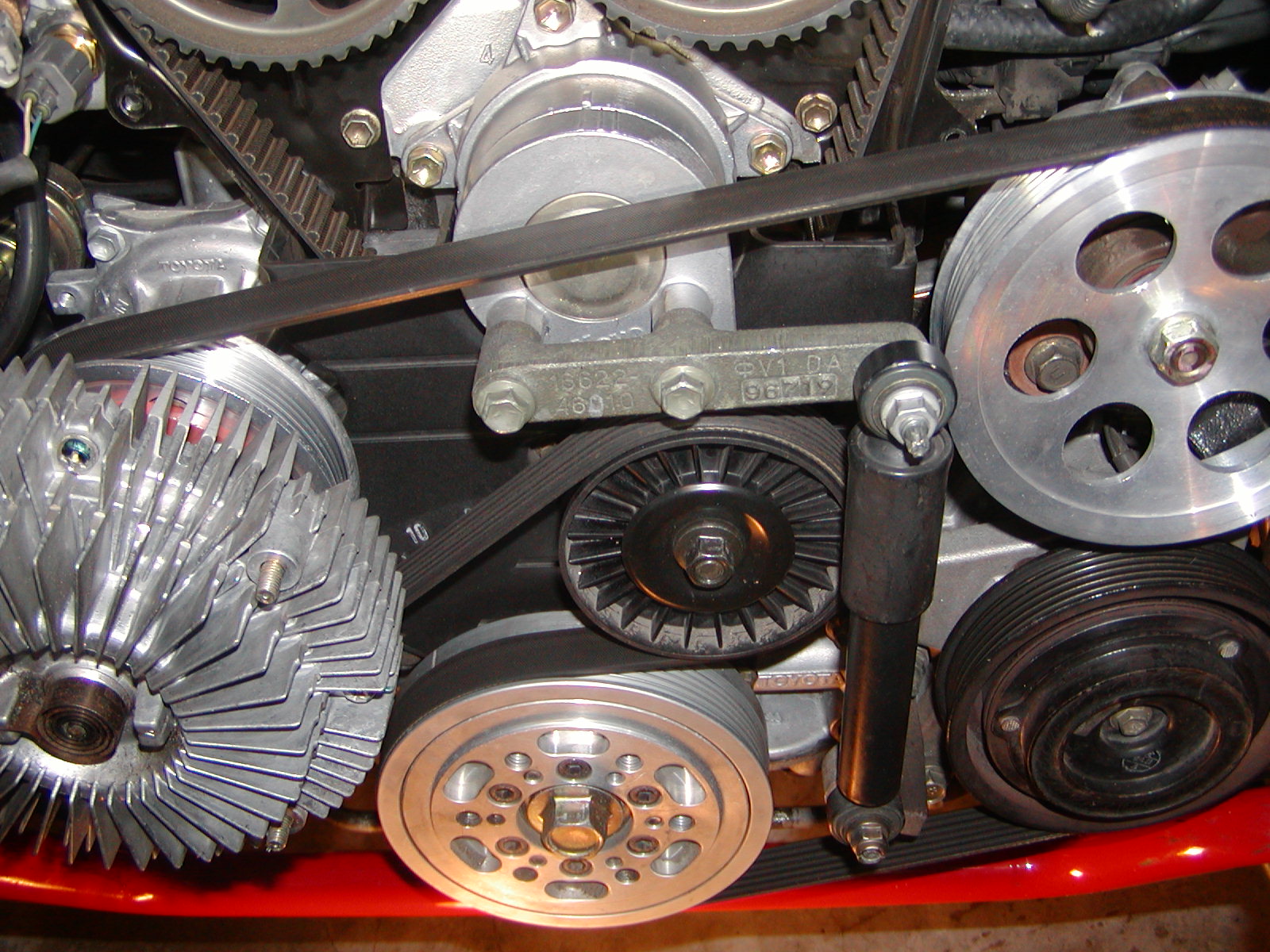

Drive Belt-(I can never remember how it goes~!)
Reed Valve (IACV)
Turbo Controls and Locations

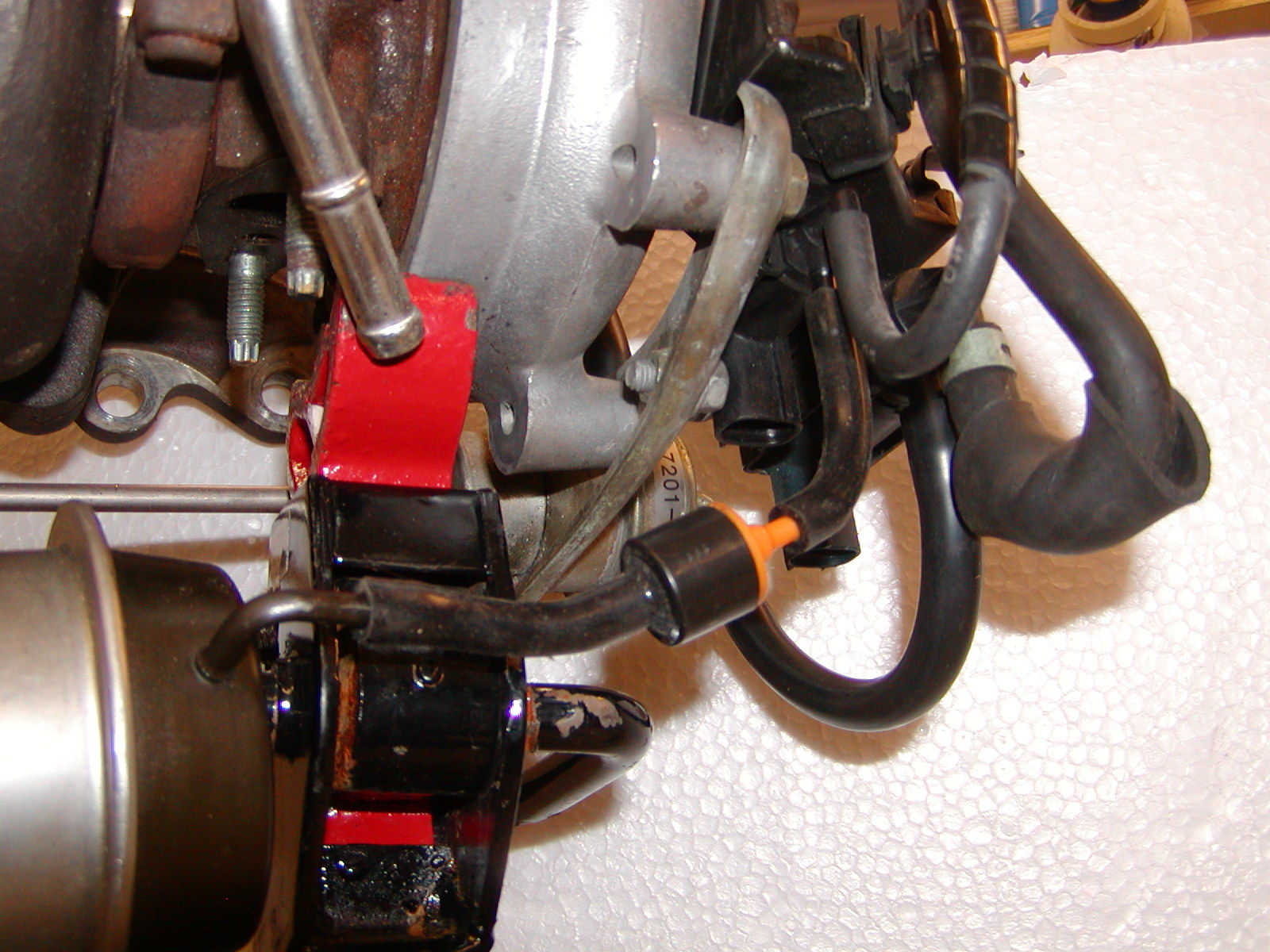

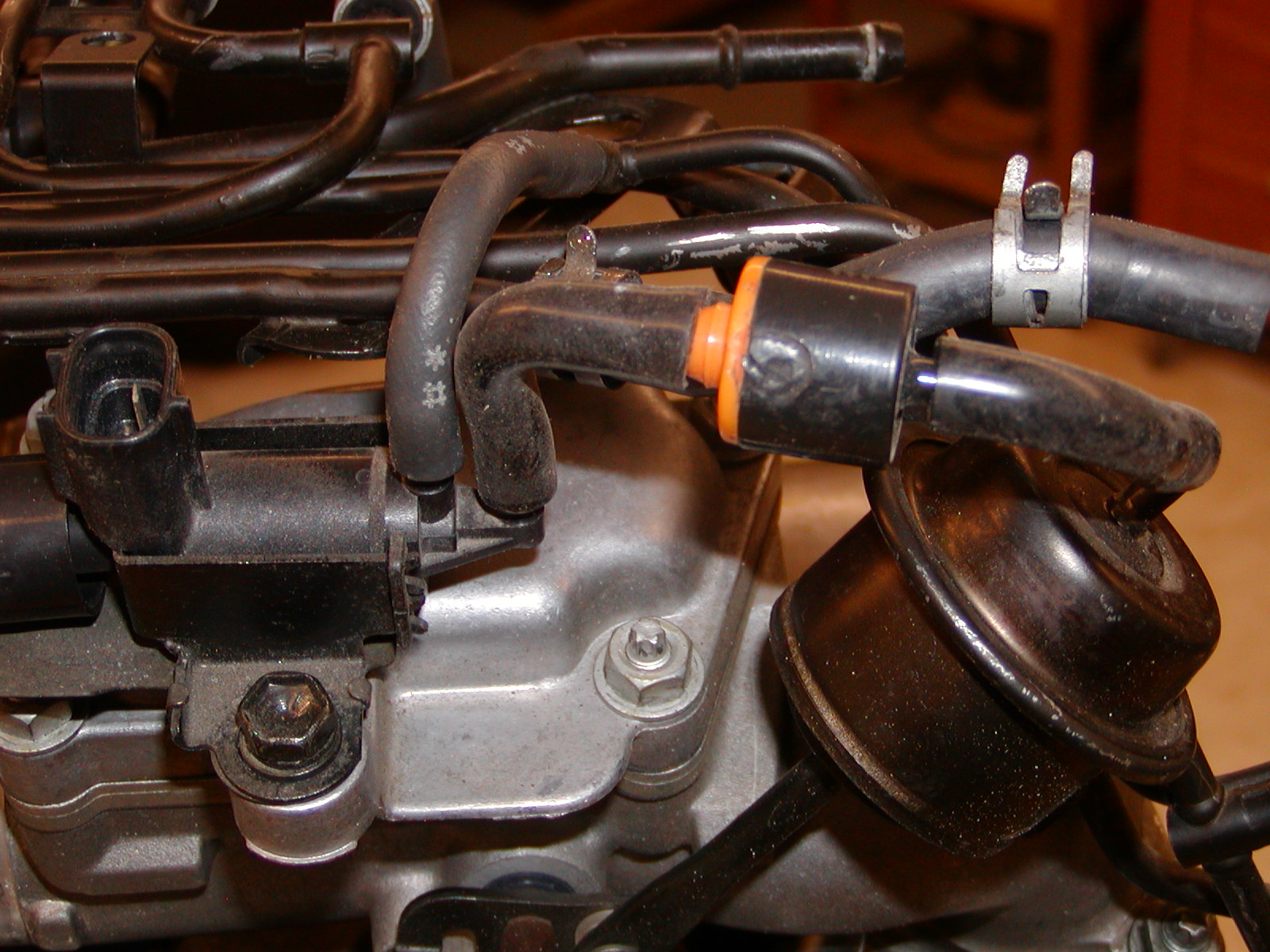

TTC with Check Valves Installation-
IACV connection
EGCV connection ((Look at the above Picture EGCV and Wastegate, and this is the hose on the right that goes to the EGCV Actuator)
3-Way Vacuum line- Adapter for supplying multiple pressure sources off the manifold, like gauges and such.

#1 Turbo Boost Control-This is the basic way of installing the Boost Controller. All you need to do is to intercept the *right* side vacuum line and install the boost control between the pressure side and the EBV actuator side. I have many pics of the EBV actuator here. I also suggest running a little longer line back towards the front of the car. This way if you ever need to revert back, just remove the boost controller and connect the 2 hoses back together. This is a much easier way if you plan on removing this later. You then adjust the MBC or EBC to whatever boost you want to see prior to transition. I use 14-15psi, or 1-Bar. So once I get to this level, usually around 2500 rpms, it "holds" there until transition, or full boost. This still gives plenty of time for pre-spool, plus all excess boost goes to the actuator for prespool.
CAP OFF VSV after you have completed the install.

NEW: EBV test: This was a test I did to really get a better understanding of how the EBV system works. I hooked up a analog boost guage to the pressure side of the EBV actuator to read the pressure output. (Note: gauge is reading 0-10psi at top) I hooked a LED to the VSV to signal me when the VSV activated and opened. I was surprised to find that the VSV switches off after transition, as opposed to staying open keeping the gate closed.
So the VSV is "normally off". As soon as you take off, the EBV actuator is pressurized, and stays pressurized until 4000RPM. Then the ECU activates the VSV and opens the pressure to atmosphere. This in turn prevents the actuator from opening by removing all pressure to it.
So what the video above shows, or what your looking at, is the EBV actuator pressure on the steering column, and the tach in the background. Right around 4000 rpms, the LED lights up denoting the VSV has been activated. Watch the boost gauge drop to "0" PSI as soon as the pressure is releived (like a boost leak). After full transition, the boost gauge rockets to full boost. Hence why I think we see that "dip" in the dyno curves for stock sequential systems. It does surprise me that the ECU doesn't continue to keep it open. I can only assume that Toyota found it better for the EBV gate to remain open after full transition. To me it doesn't make sense. It diverts exhaust pressure away from the turbine by dumping down the back side of the turbine. But what do I know (-:

So this confirms that the way I do my EBV #1 boost mod is actually better. The boost never goes to "0" in my method. It just holds it at whatever boost you choose, and the excess boost is used to open the EBV gate in sufficient time to get pre-spool.

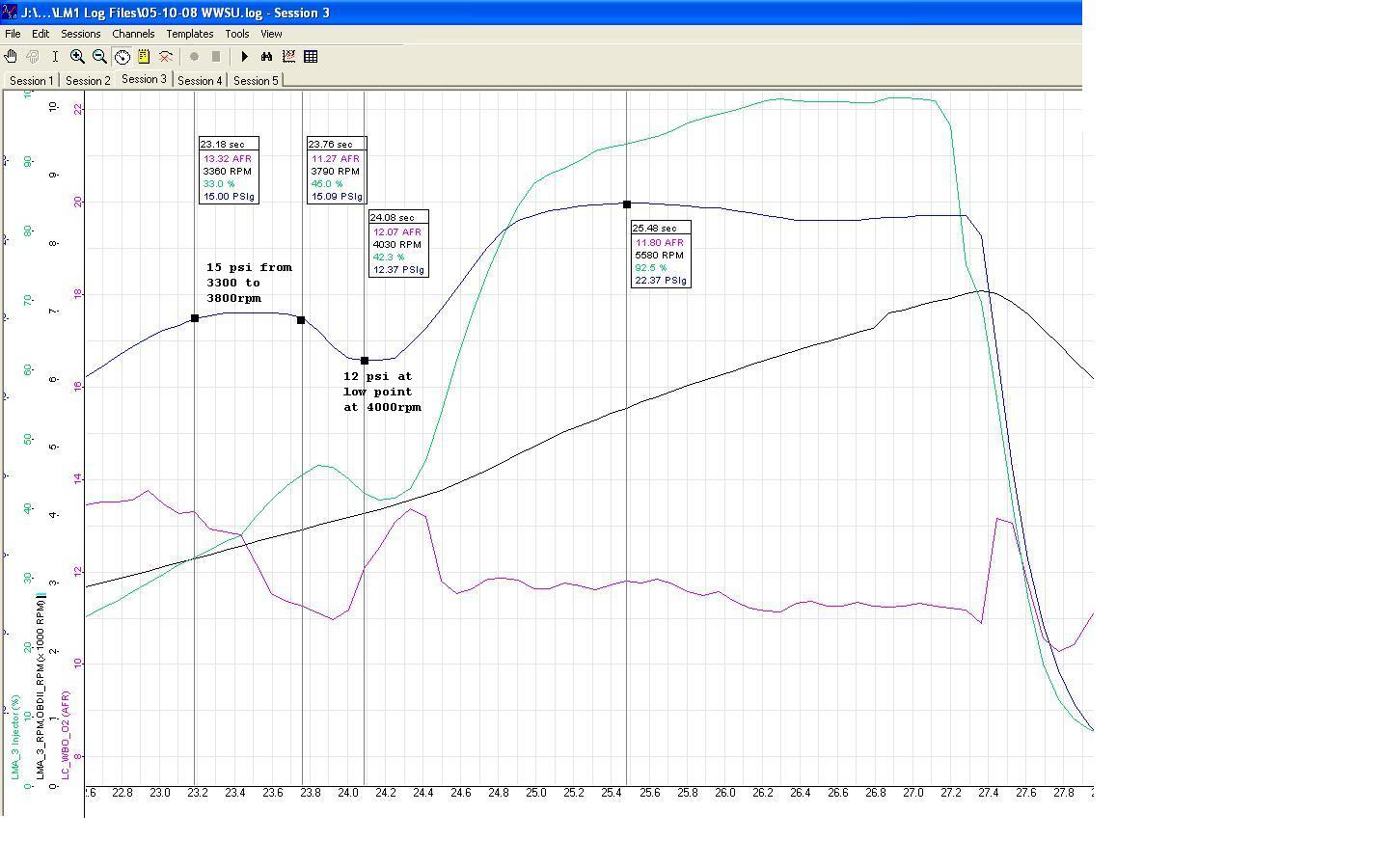

Here is a LogWorks Log I made showing the boost characteristics. LogWorks-1
I really don't think I can get rid of the "Dip" all together. It is barely noticable with my butt dyno this 3psi drop. Once the EBV does start to open, your bound to loose some energy. I am still trying to find away to distribute the boost pressure so the curve goes flat rather than dip. This can be done if you could raise the transition to around 4200rpm +

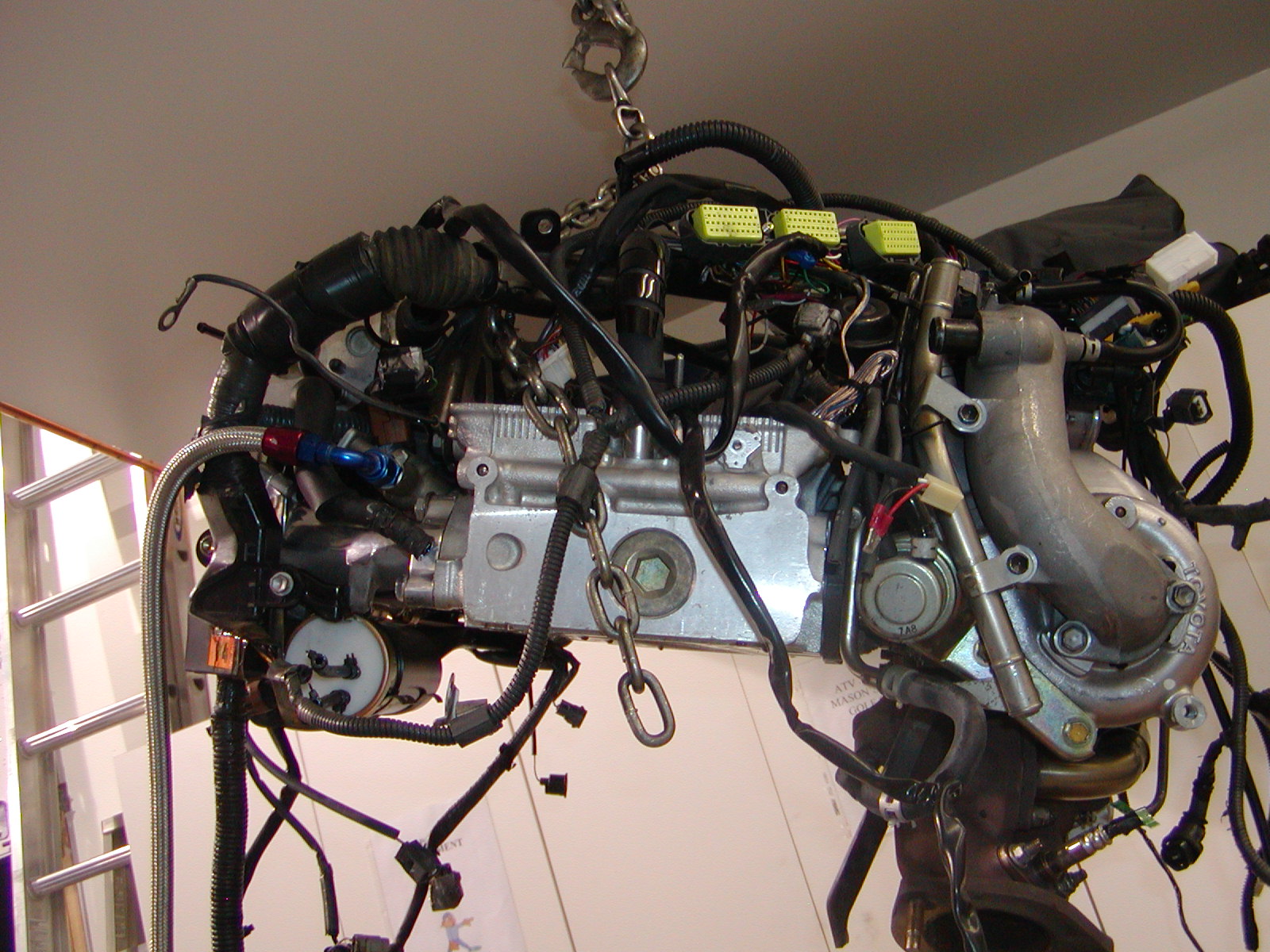

Top Half of Engine,...Showing the head, intake manifold, and turbo's off the short block. Pressure tank lower left. EBV middle right. Notice ECU harness on top. Easiest way to pull the engine with all wiring in tact.

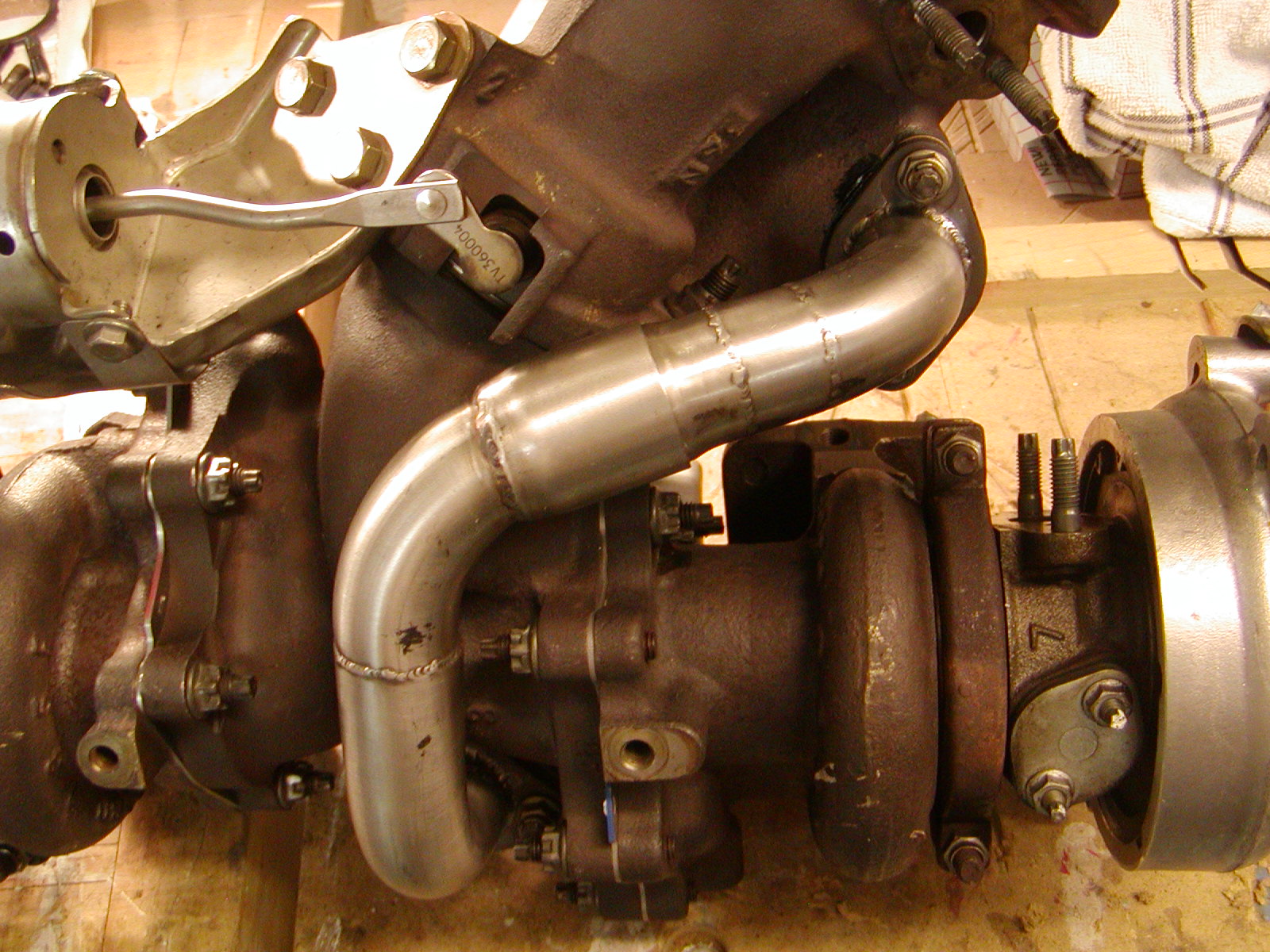

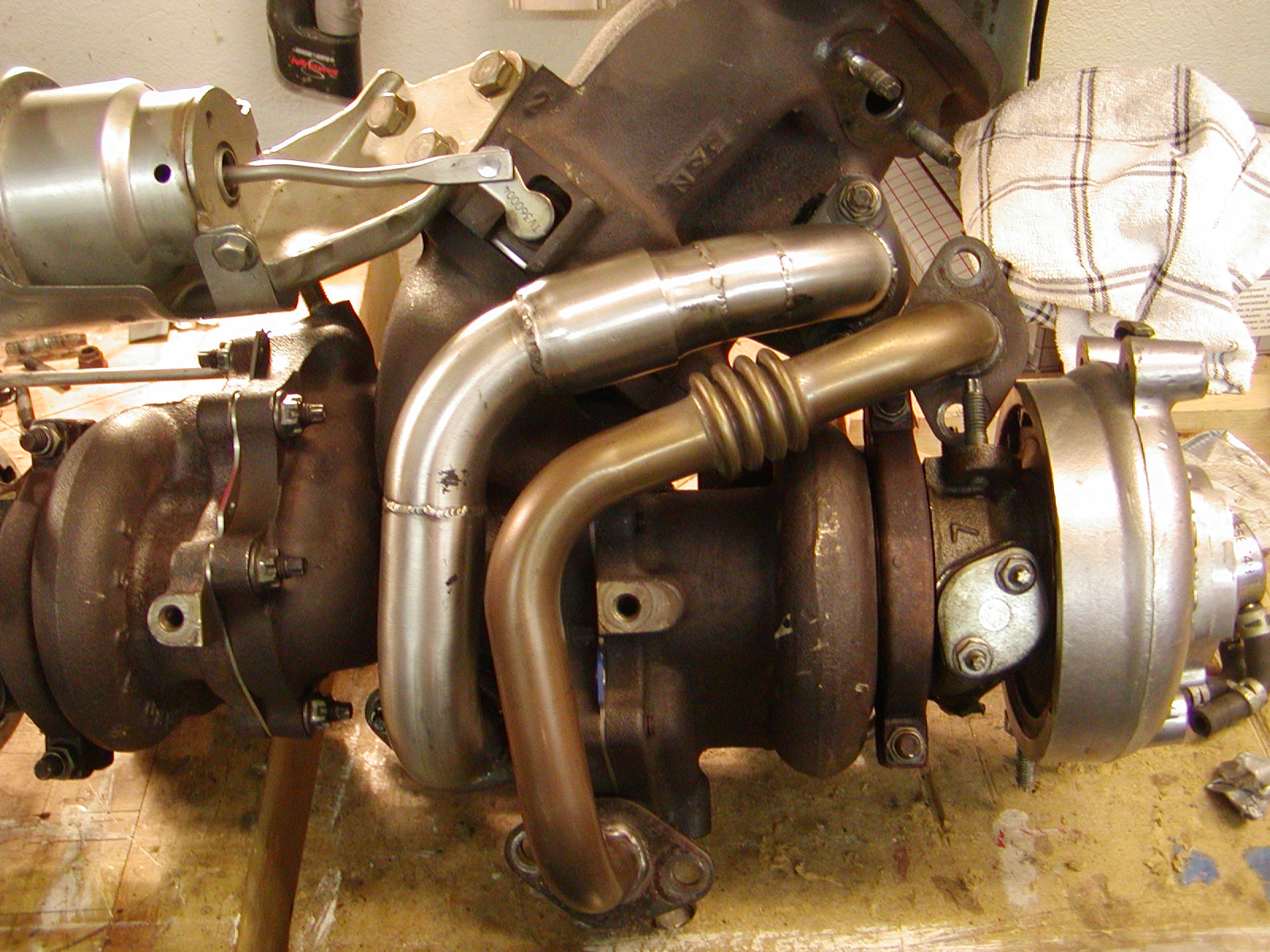

Exhaust Bypass Tube Modified (Old vrs New)
Exhaust Bypass Tube Modified

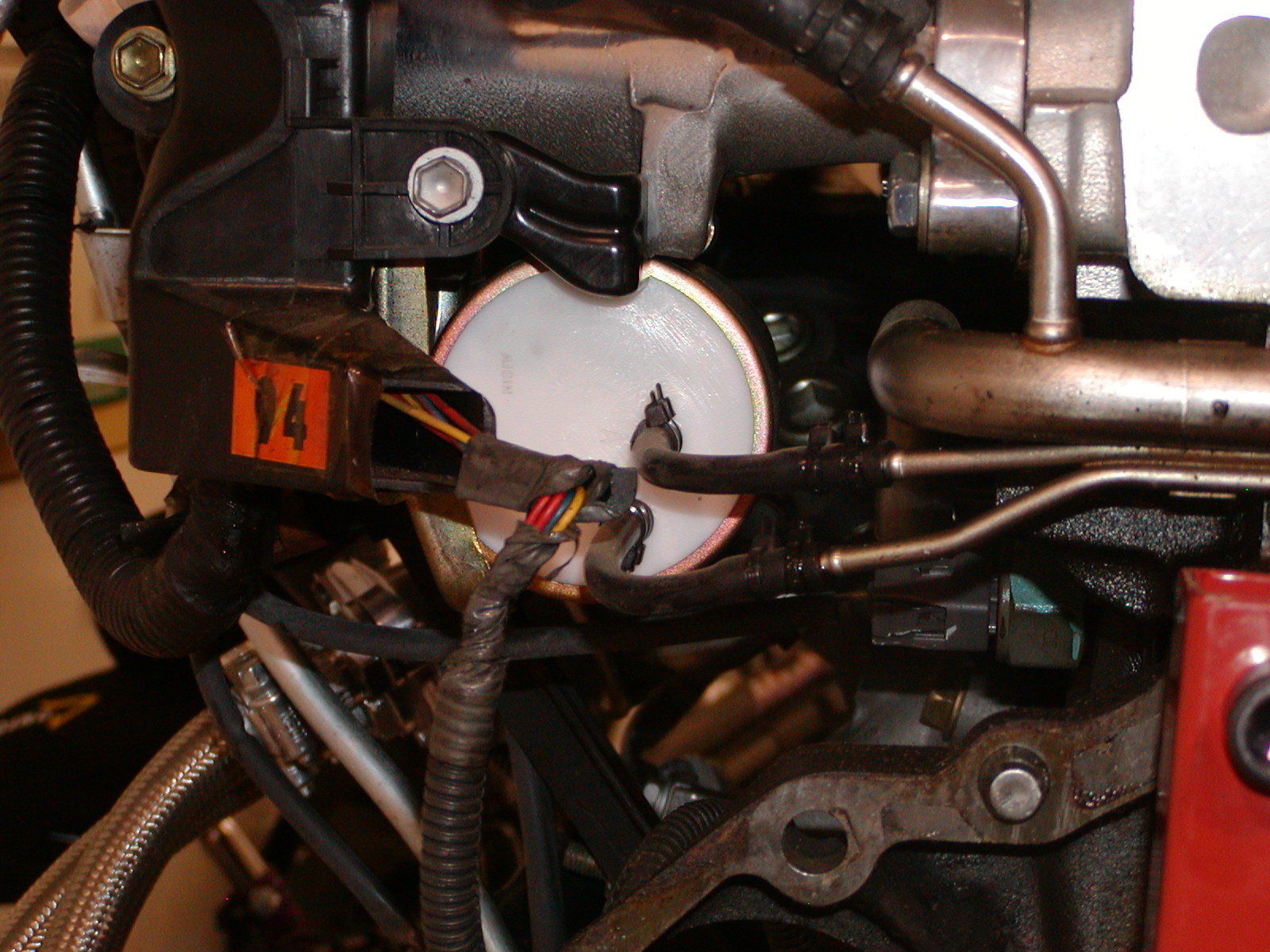

Pressure Tank
3-Way Vacuum insert for installing Vacuum Lines (V6 Forerunner PN 90917-11027) ~$25.

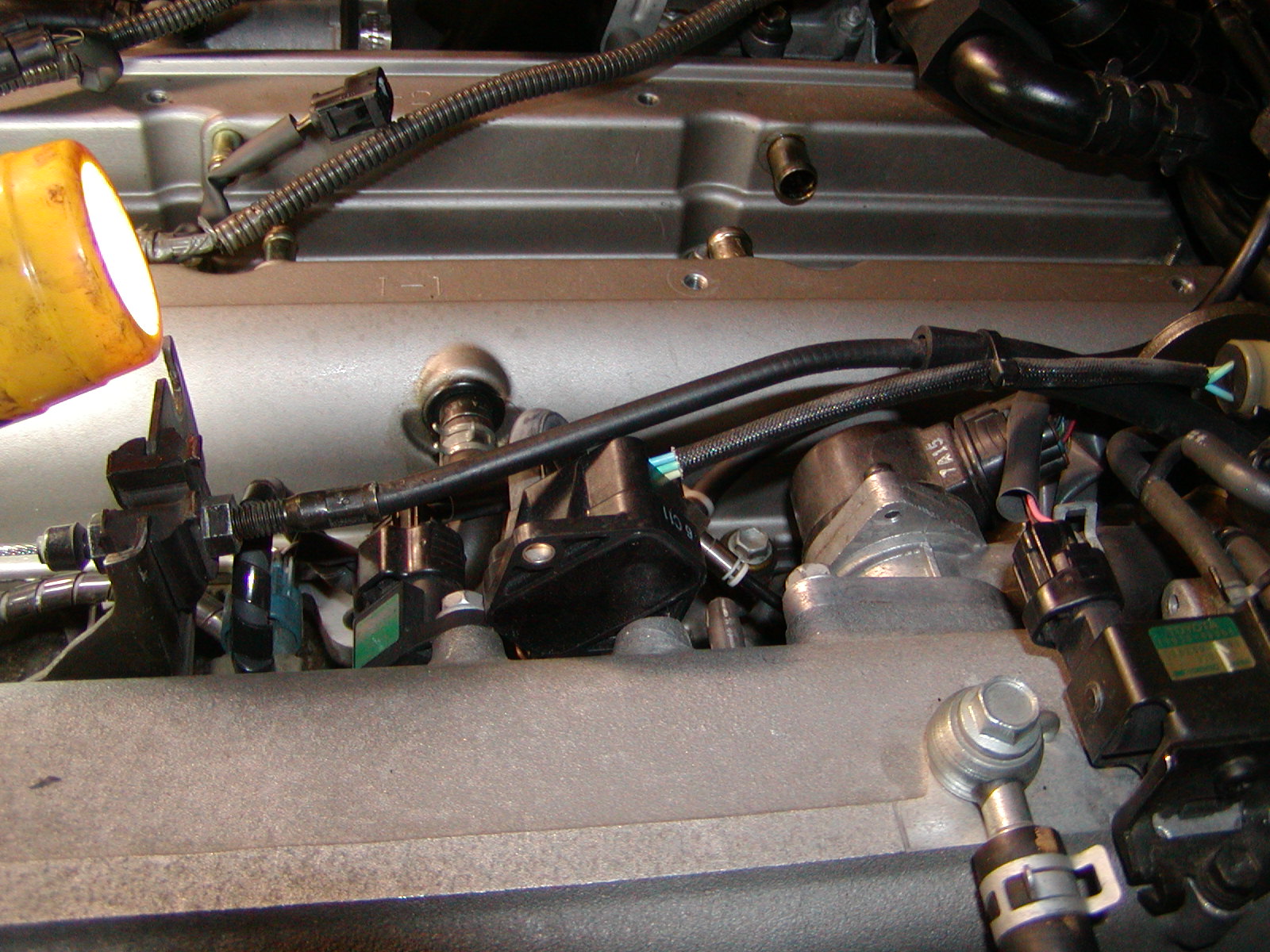

TPS
VPC Installation With SAFCII

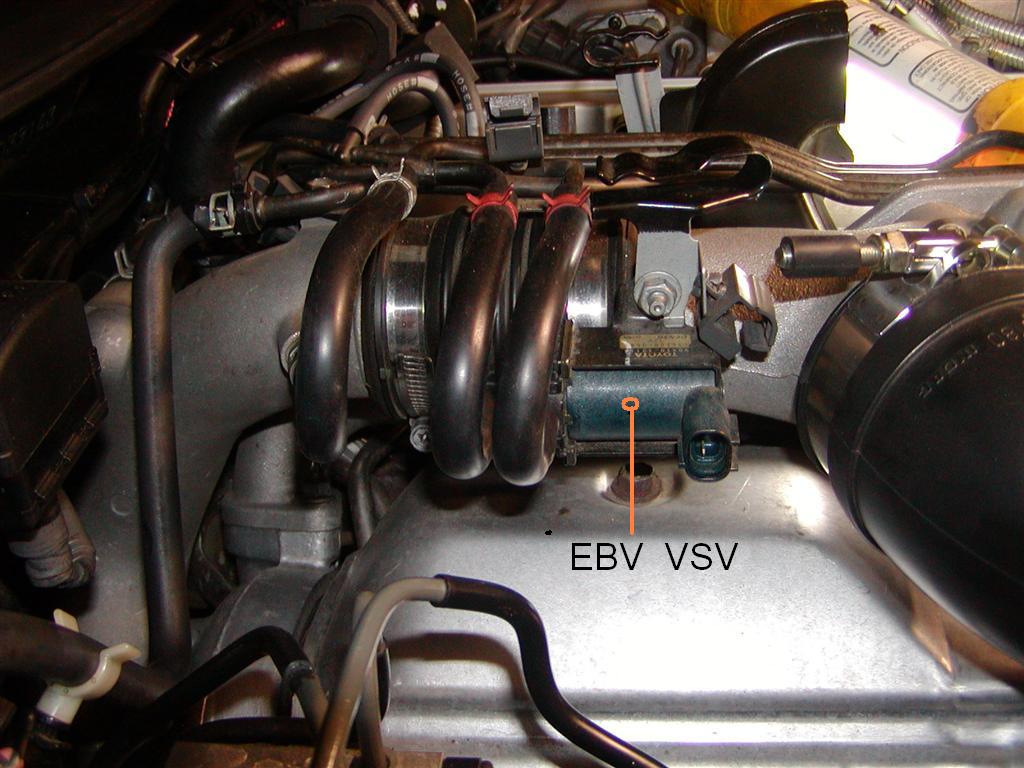

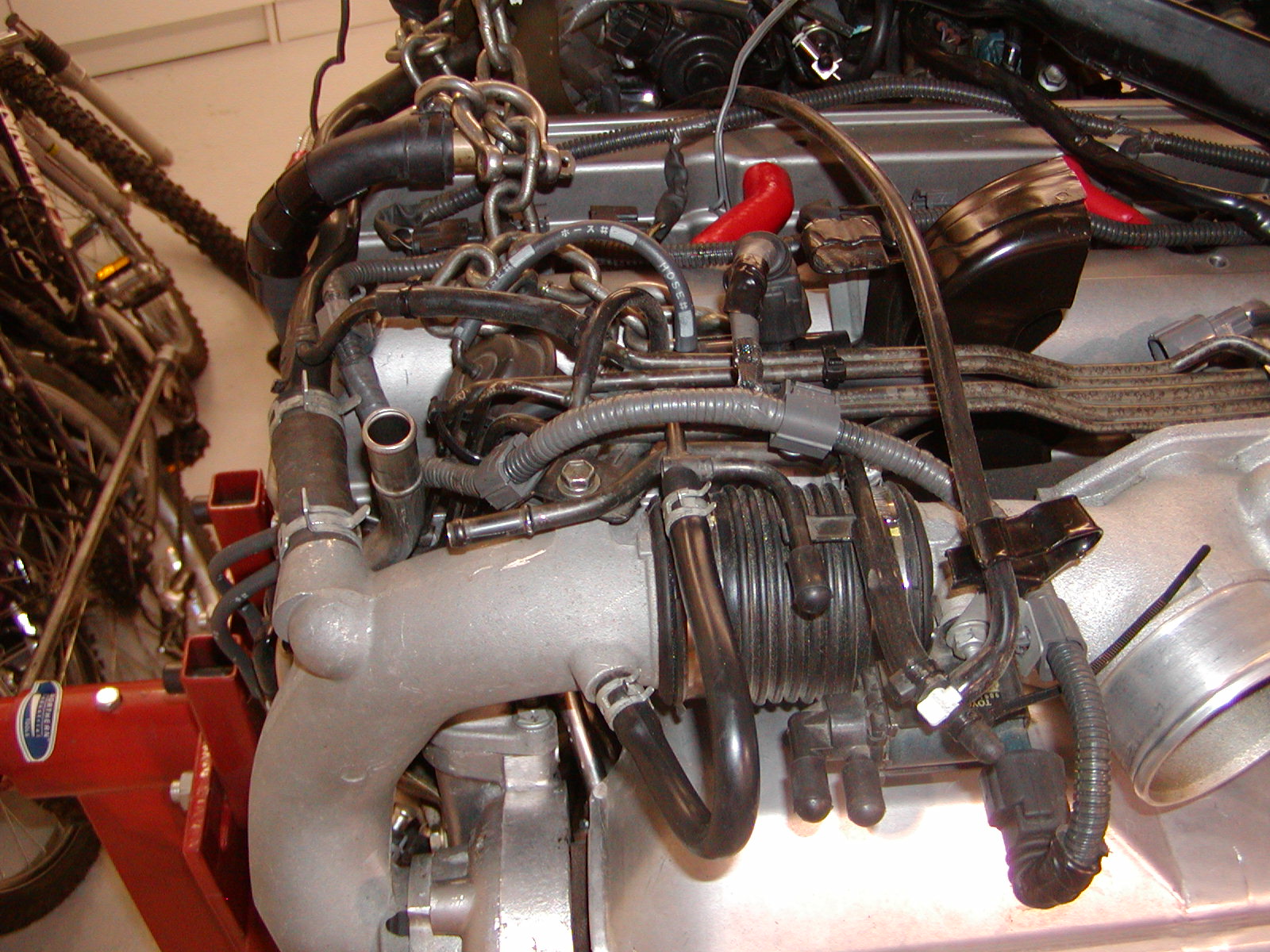

VSV EBV

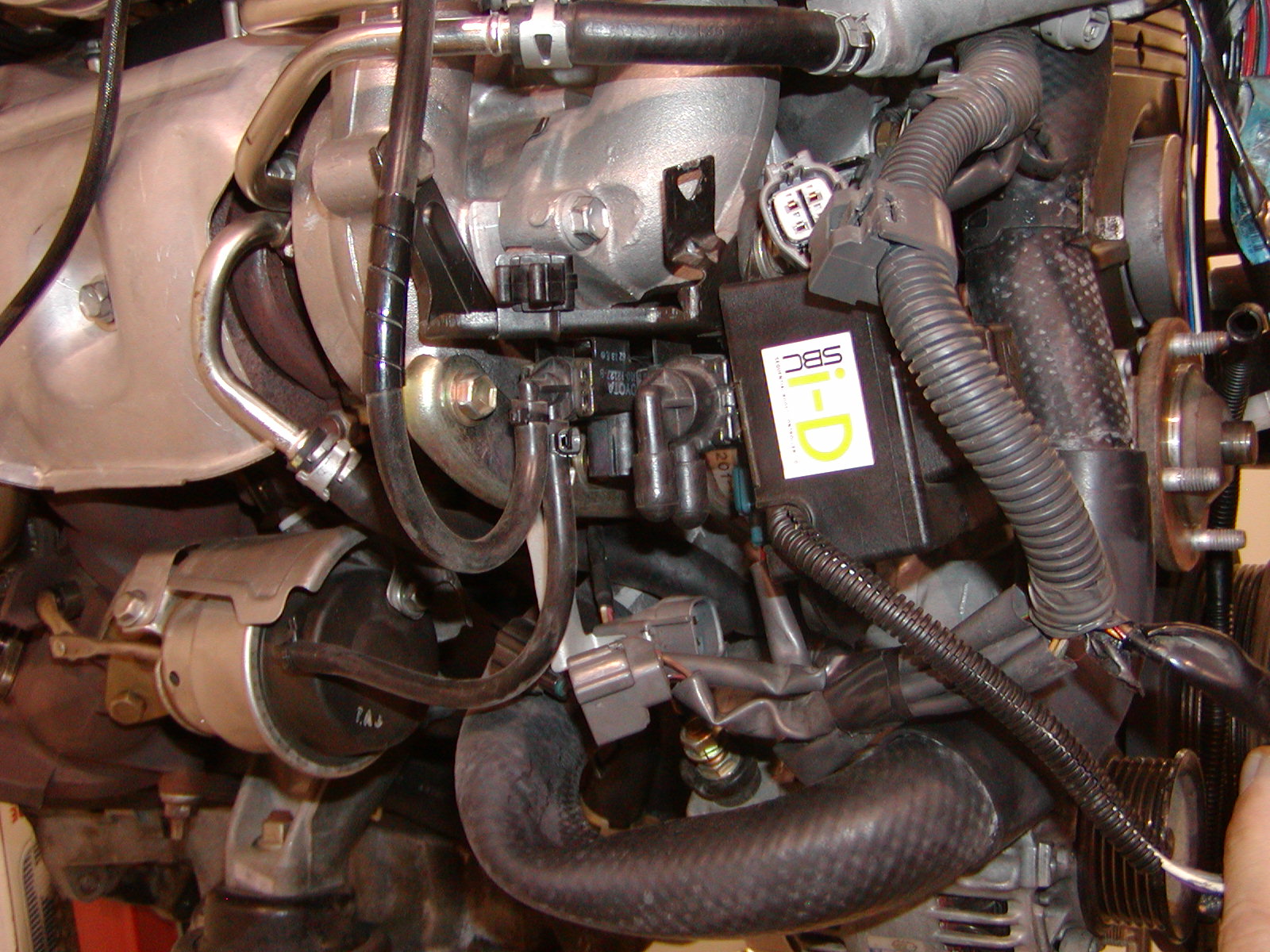

VSV's (Left): EGCV VSV (Right): Wastegate VSV

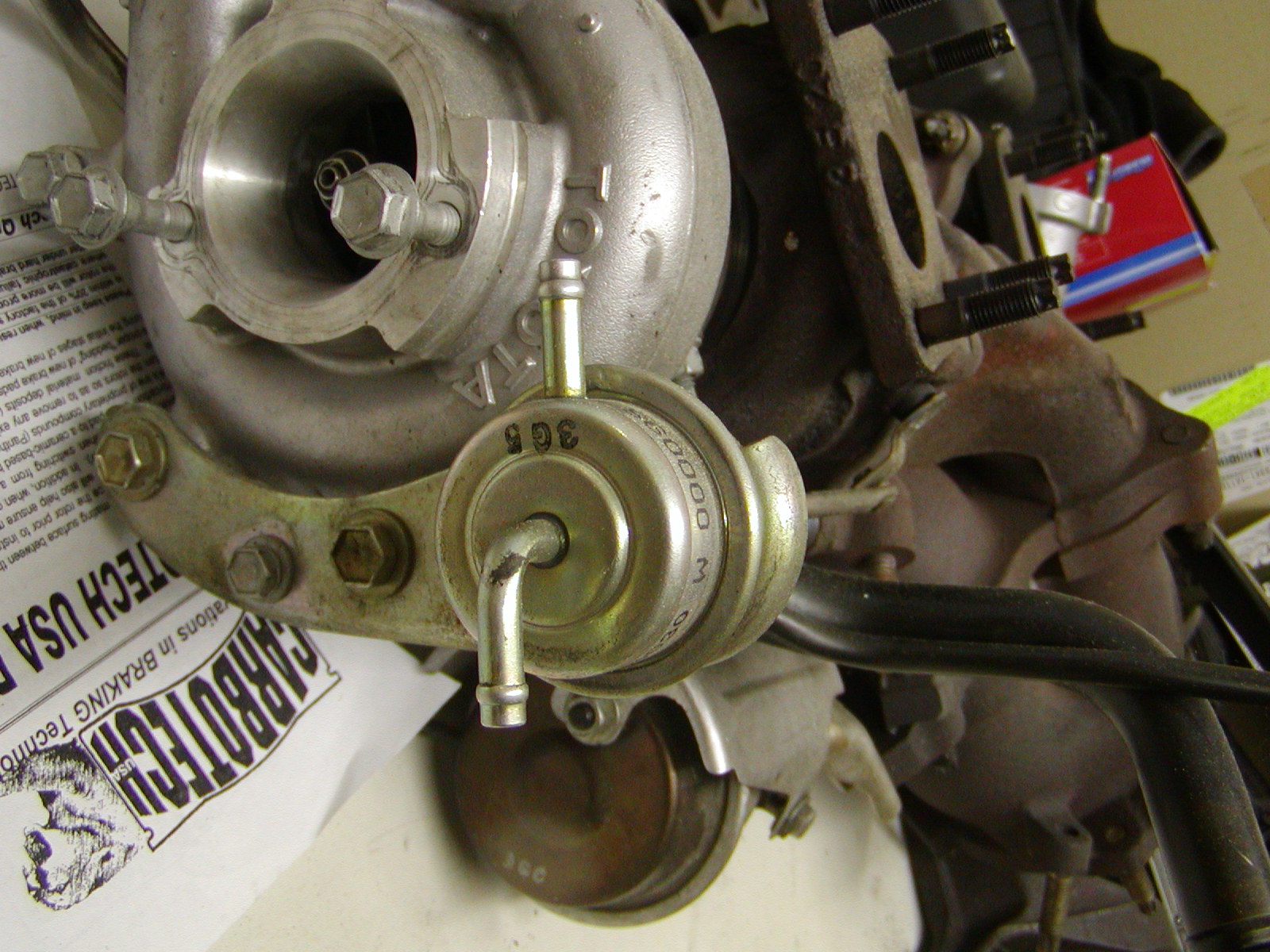

WG Actuator

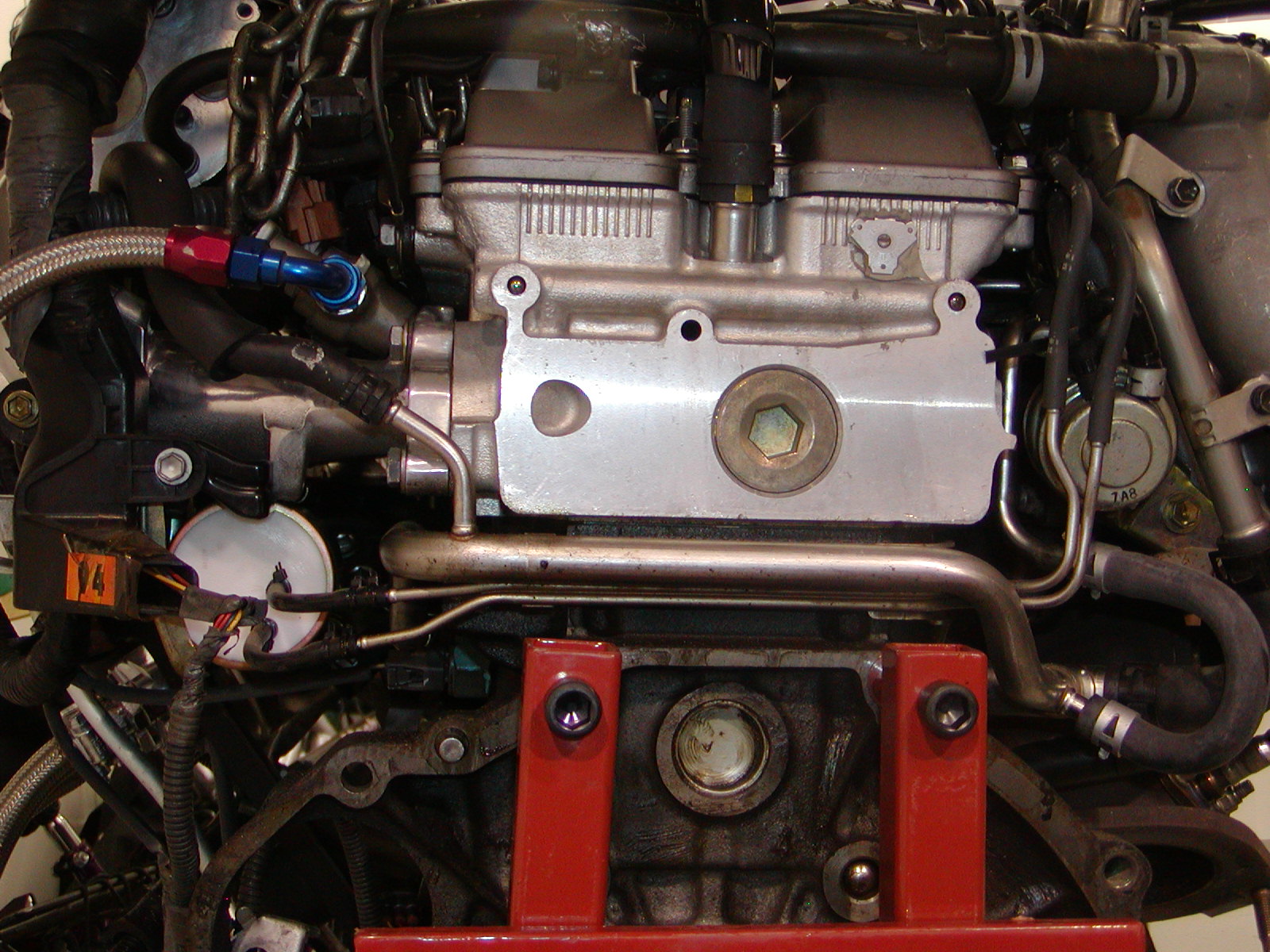

Under hood Vacuum Diagram

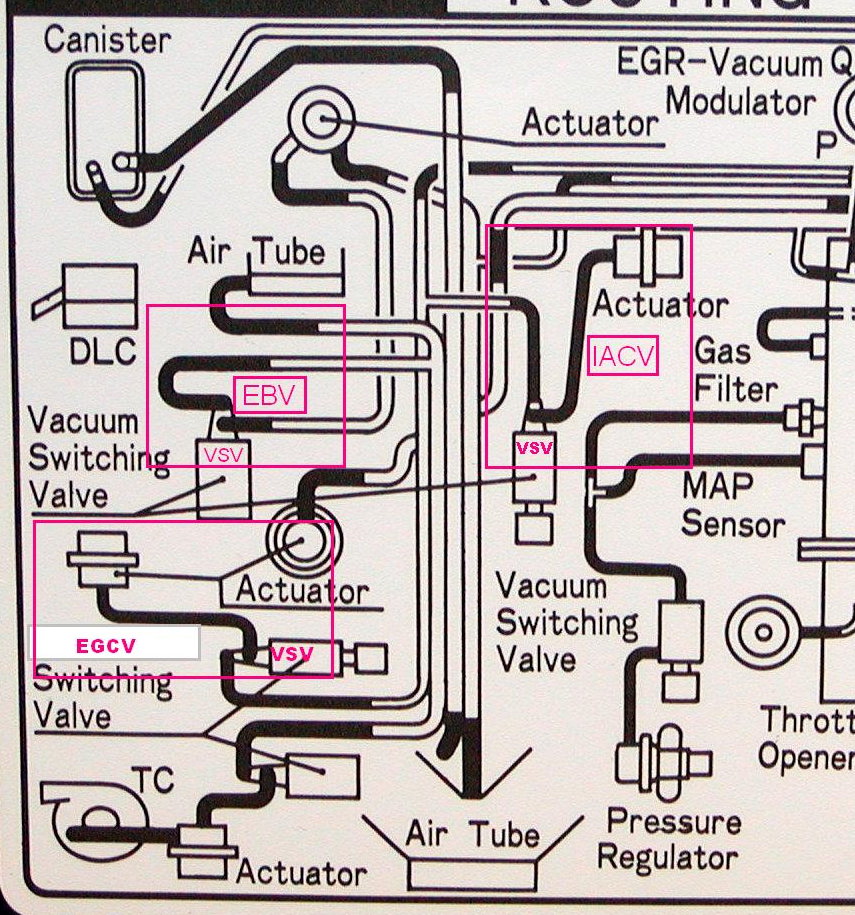

Layout for sequential operation. Must have IACV, EGCV, EBV VSV's and Actuators in place.

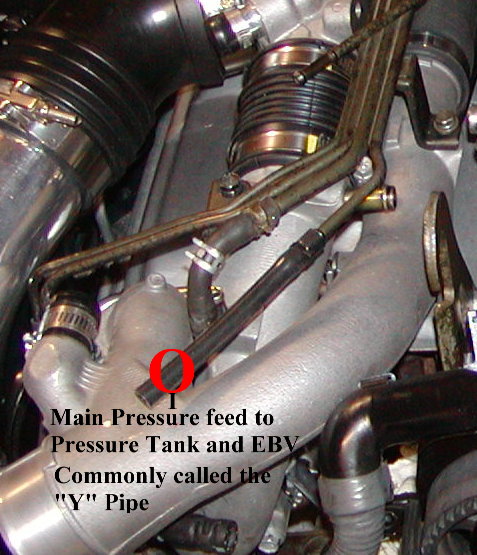

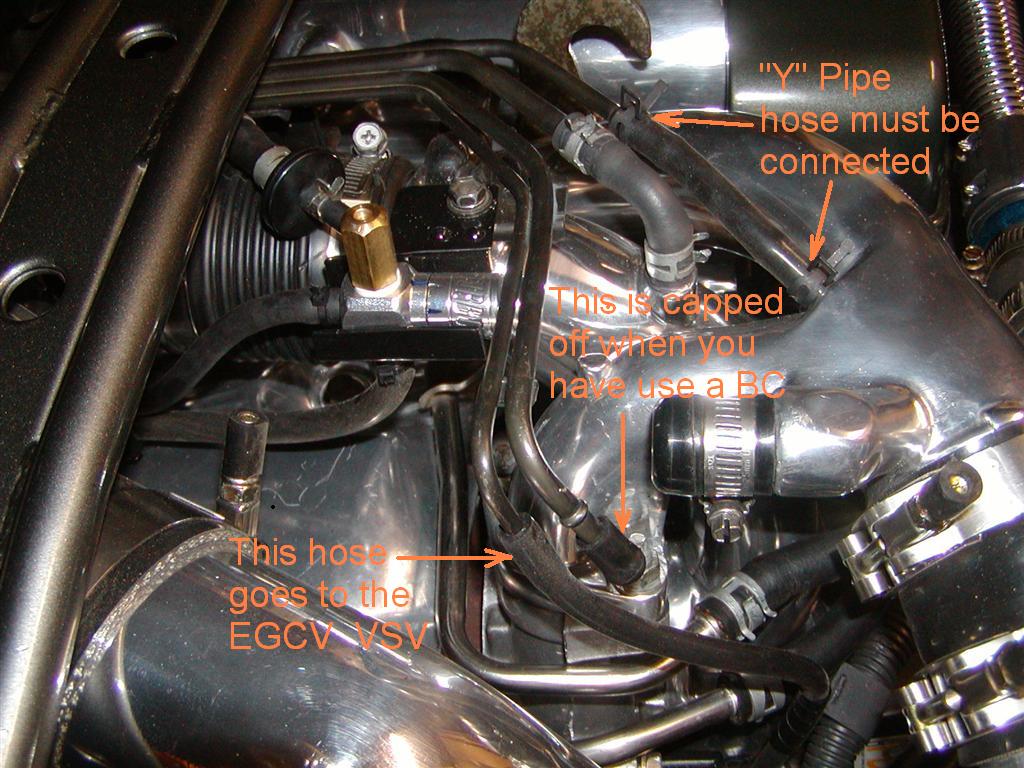

"Y" Pipe Connection
Hose Routing
IACV
EBV Hoses
EGCV/Wastegate VSV's

Graph of various wheel packages I have weighed---Lightest is CCW fronts and RX7 rears with drag slicks. That package weighed 146 pounds. Same except with Drag "radials" was 163 pounds. Compare with running stock wheels all around with Drag radials is 222 pounds~!

16x8 RX7 Wheels-----16 pounds each
MT ET Slicks----------23 pounds each (26x10.5-16)
MT ET Radials---------30 pounds each (255/50-16")
16x7 CCW------------15 pounds each
Firestone Tire----------20 pounds each (175/56-16")
17x8 Stock Front------24.75 pounds each
17x9.5 Rear------------26.55 pounds each
Average 17" Tire-------26 pounds each

My new CCW Corsairs weigh 192 pounds for my road course set-up. I have Pilot Sport Cups.
18x10----285/30-18" Fronts.....Rim weight = 21 pounds each....Tire = 26 pounds
18x11----295/30-18" Rears......Rim weight = 22 pounds each....Tire = 27 pounds
